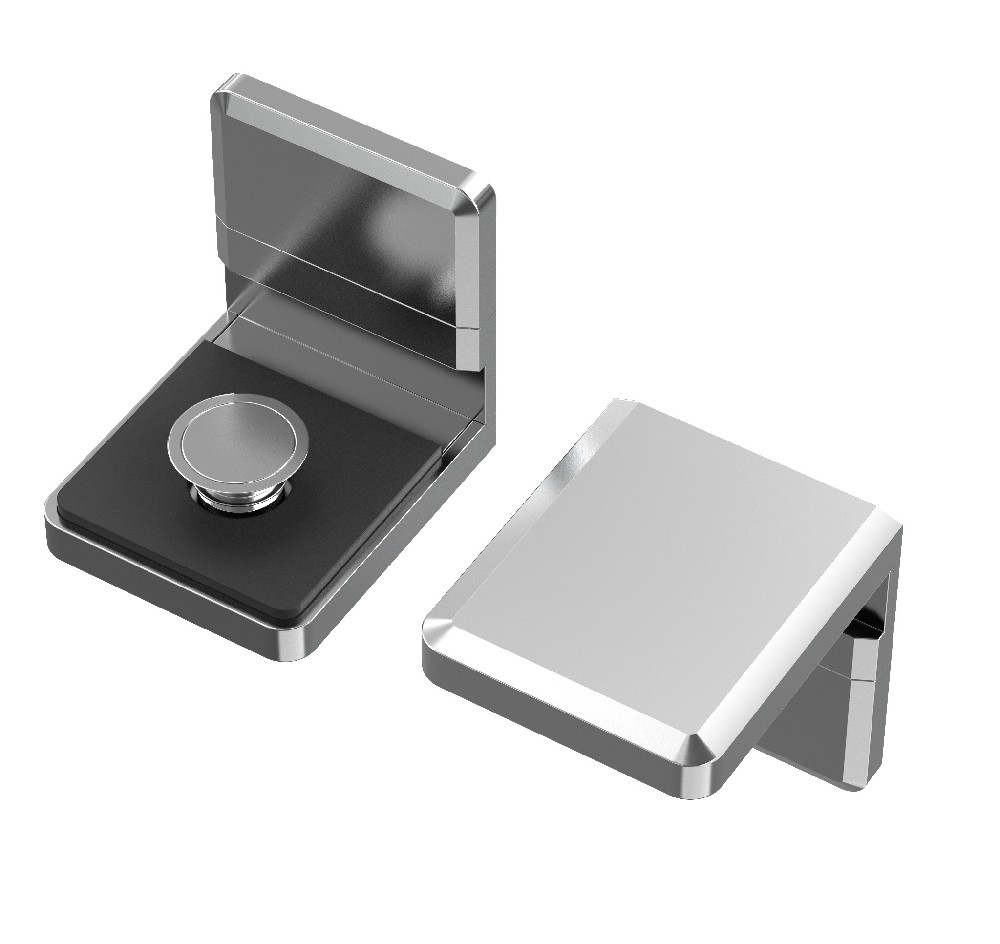

Wall Clamp 90° 1021
Code: SPS-1021.23
Note: For 6-8mm glass
Product details
•Flush design for smooth glass surface.
•Adjustable cut position ±1.5mm to any direction of both holes.
•Max. load: 40 kgs (2 hinges)
•Outward openning
•Fit for glass panels in: 6/8mm glass
•Countersunk glass fixing
•Slip-in cover wall plate
•Door panel size: 650-900mm
•Door panel height: max. as 2000mm
•Material: Solid Brass with SUS parts
•Non-asbestos Gaskets supplied

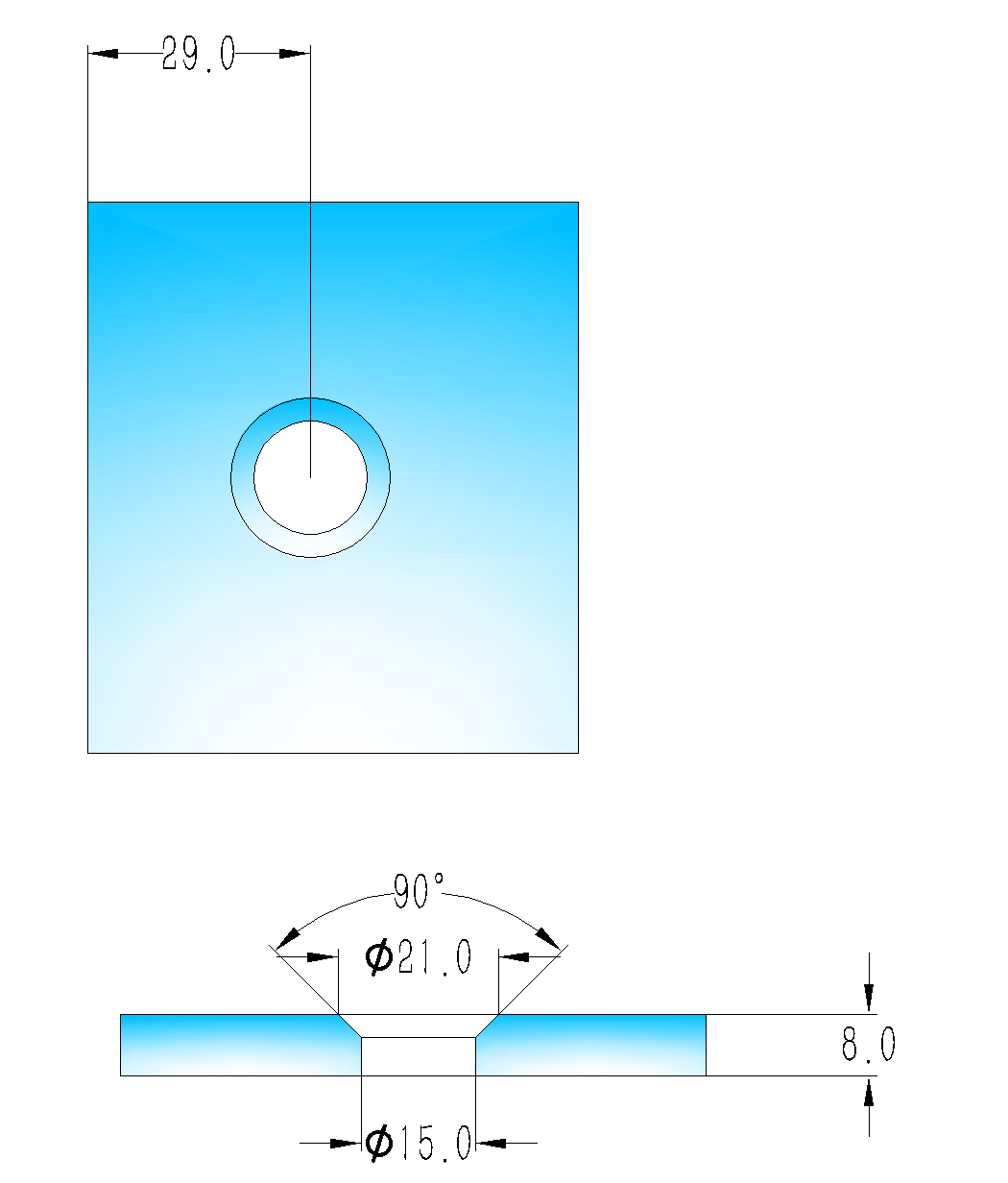

Glass Cut:
