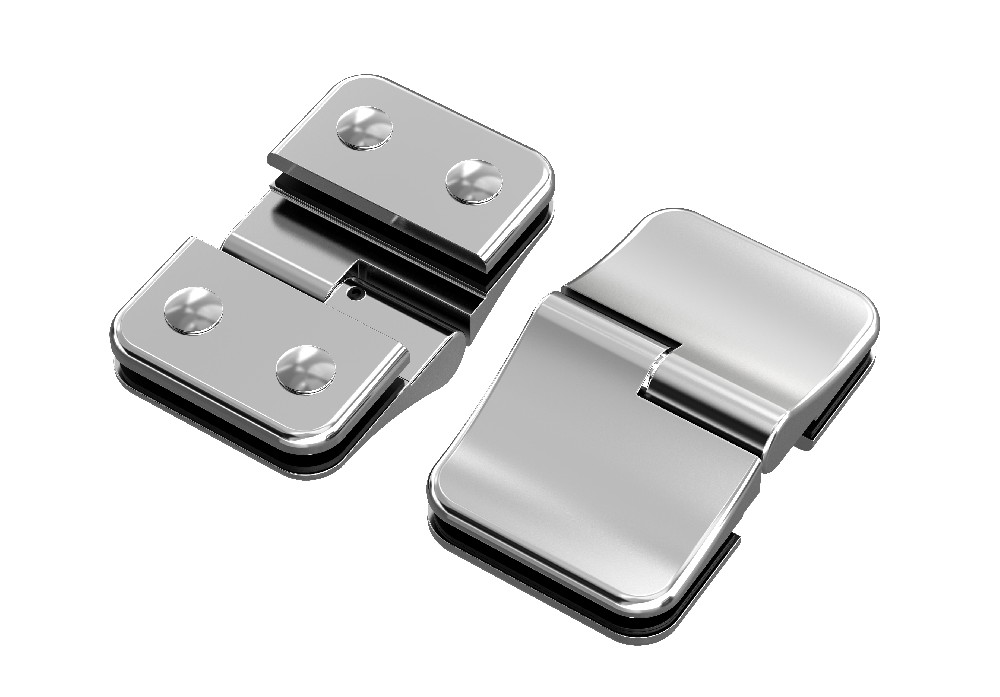

Glass-Glass 180° Lift Hinge 1012
Code: SPS-1012.04
Note: For 6-8mm glass
Product details
•Lift hinge with counter plates
•2 Hinges maximum load: 40 kgs
•Outward openning
•Fit for glass panels in: 6/8mm glass
•Door panel size: 650-900mm
•Door panel height: max. as 2000mm
•Lift-drop closing, self closing from 30°
•Door is raised approx. 5mm on openning.
•Supplied in Left / Right version
•Material: All Solid brass construction with stainless steel spare parts
•Non-asbestos Gaskets supplied

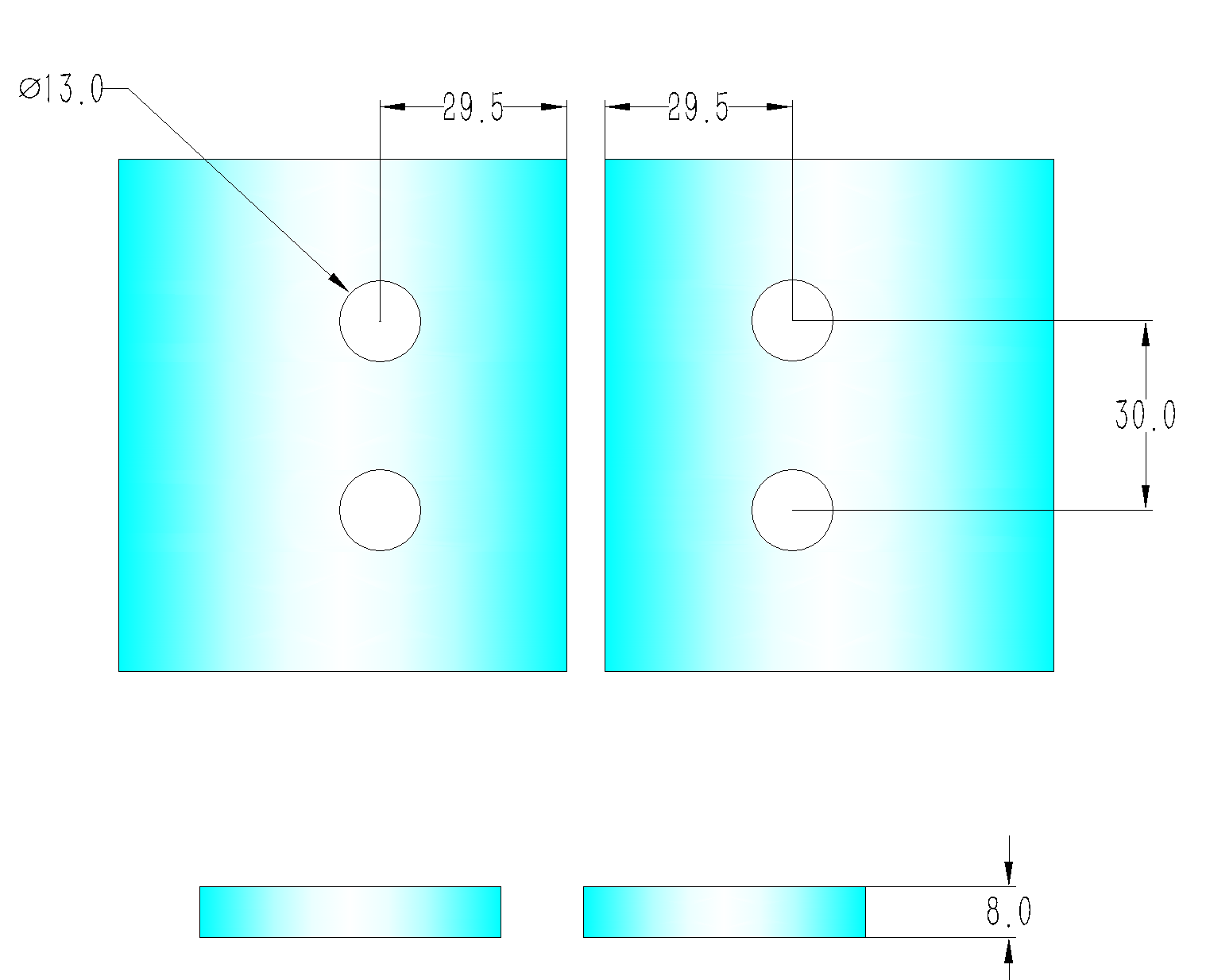

Glass Cut:
