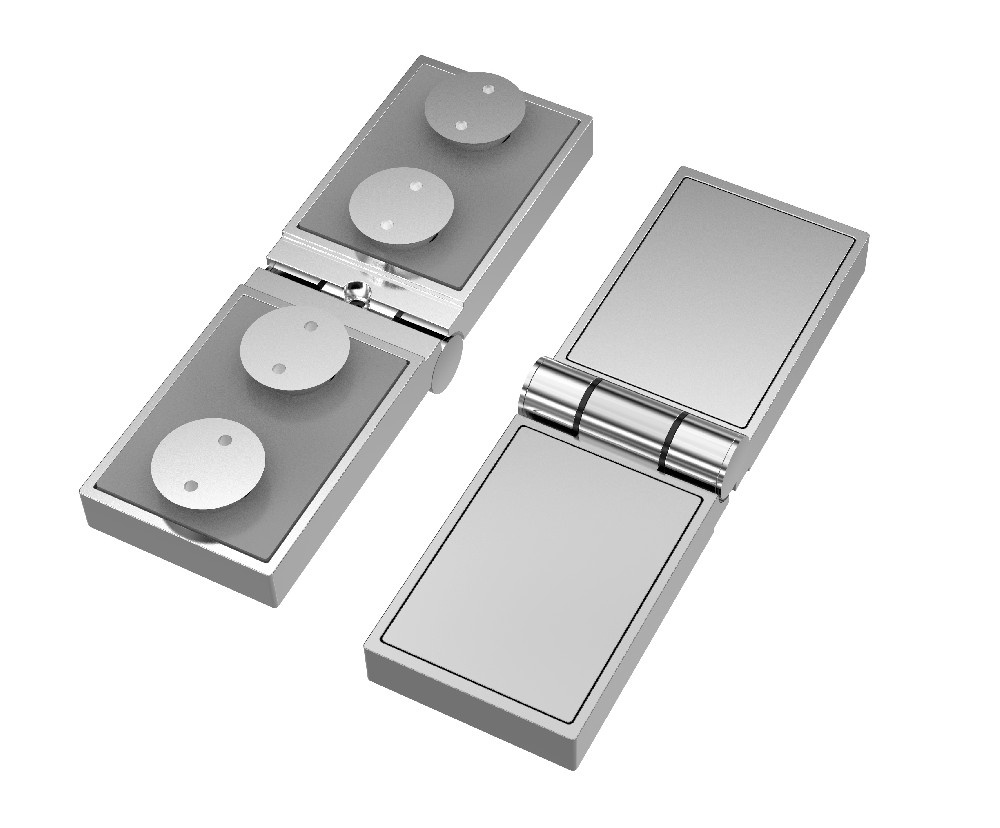

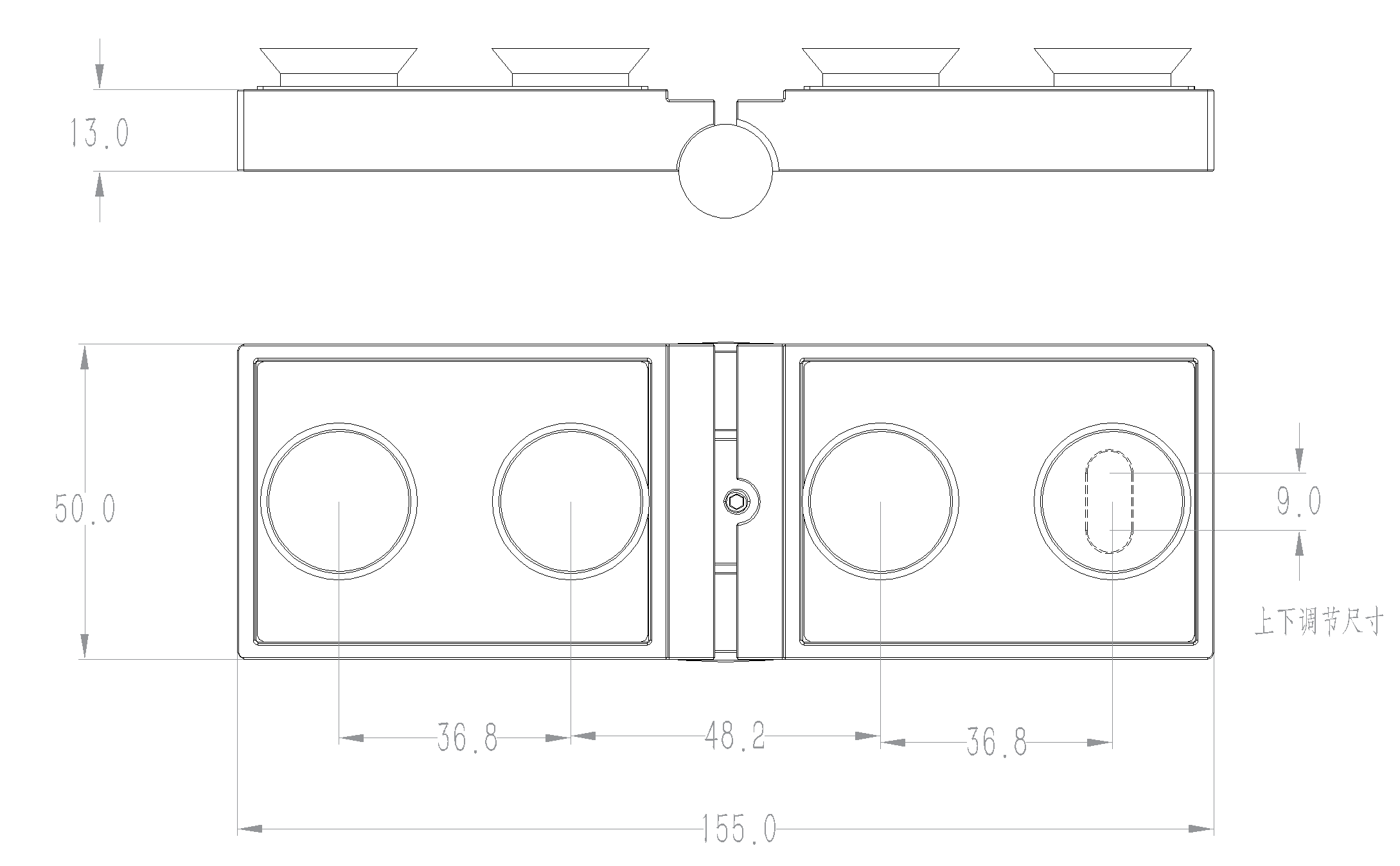

Glass-Glass Adjustable 180° Free Hinge 1088

•Free hinge with Adjustable flush screw.
     •Magnetic decorative cover plate

•2 Hinges maximum load: 40 kgs

•Outward openning

•Fit for glass panels in: 6/8mm glass

•Counter-sunk screw holes and U-slot in glass required

•Door panel size: 650-900mm

•Door panel height: max. as 2000mm

•Free Closing

•Material: All Solid brass construction with stainless steel spare parts

•Non-asbestos Gaskets supplied

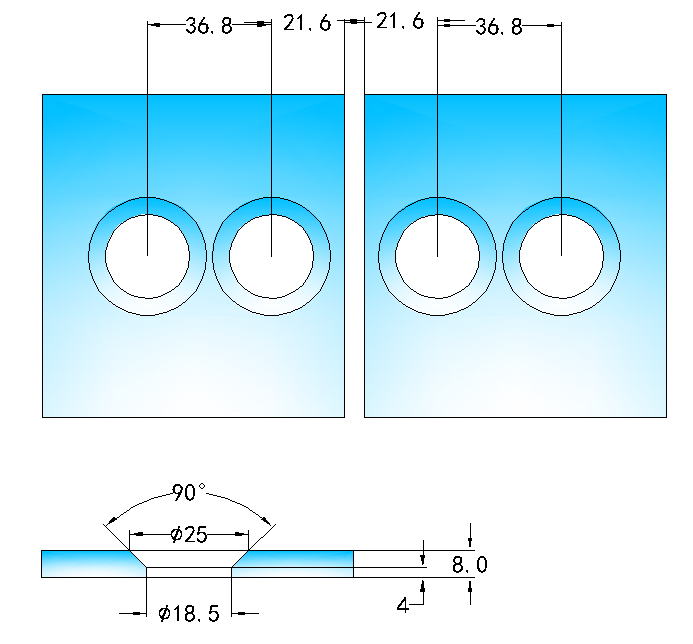

Glass Cut: Countersunk hole can be adjusted ±4.5mm vertically.
