Products

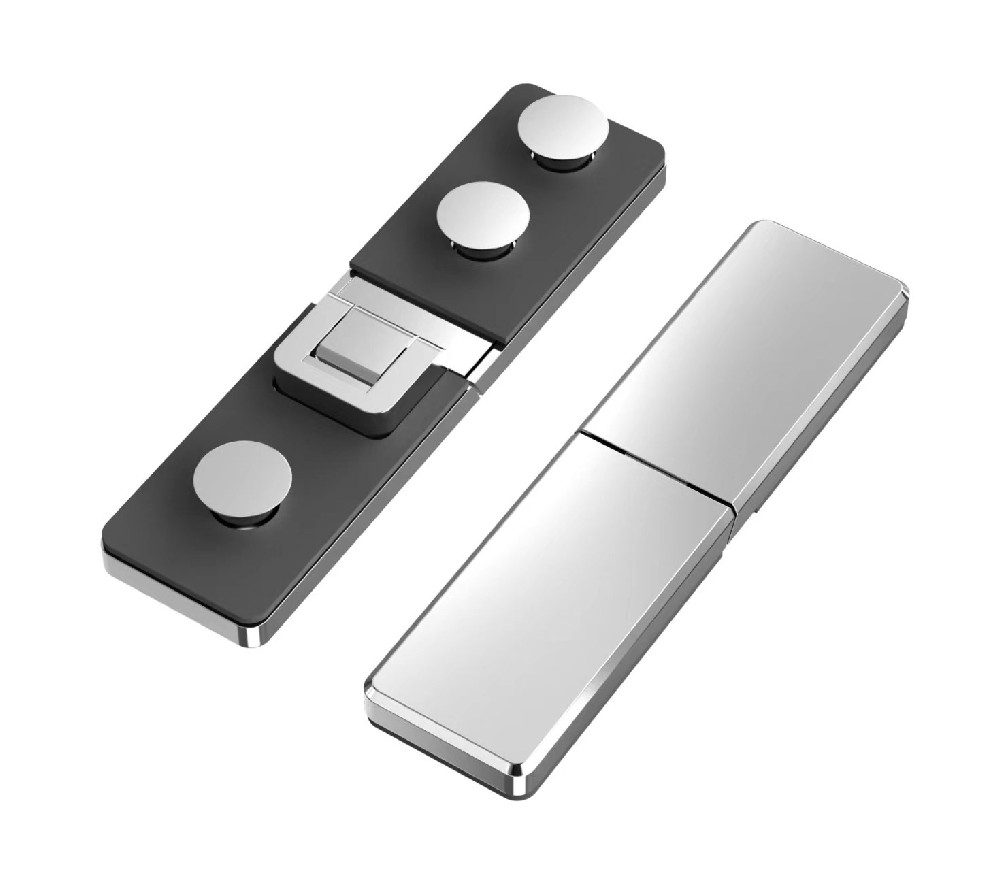

Glass-Glass 180° Lift Hinge 1016
Code: SPS-1016.04
Note: For 6-8mm glass
Product details
•Invisible rising structure when openning / closing
•Invisible Axle.
•Springed cover plate guarantees always tiny gap when closing.
•Flat-flush design for smooth glass surface.
•Max. load: 40 kgs (2 hinges)
•Outward openning
•Fit for glass panels in: 6/8mm glass
•Counter-sunk screw holes and U-slot in glass required
•Door panel size: 650-900mm
•Door panel height: max. as 2000mm
•Lift-drop closing, self closing from 30°
•Door is raised approx. 5mm on openning.
•Material: Solid Brass with SUS parts
•Supplied in Left / Right version
•Non-asbestos Gaskets supplied

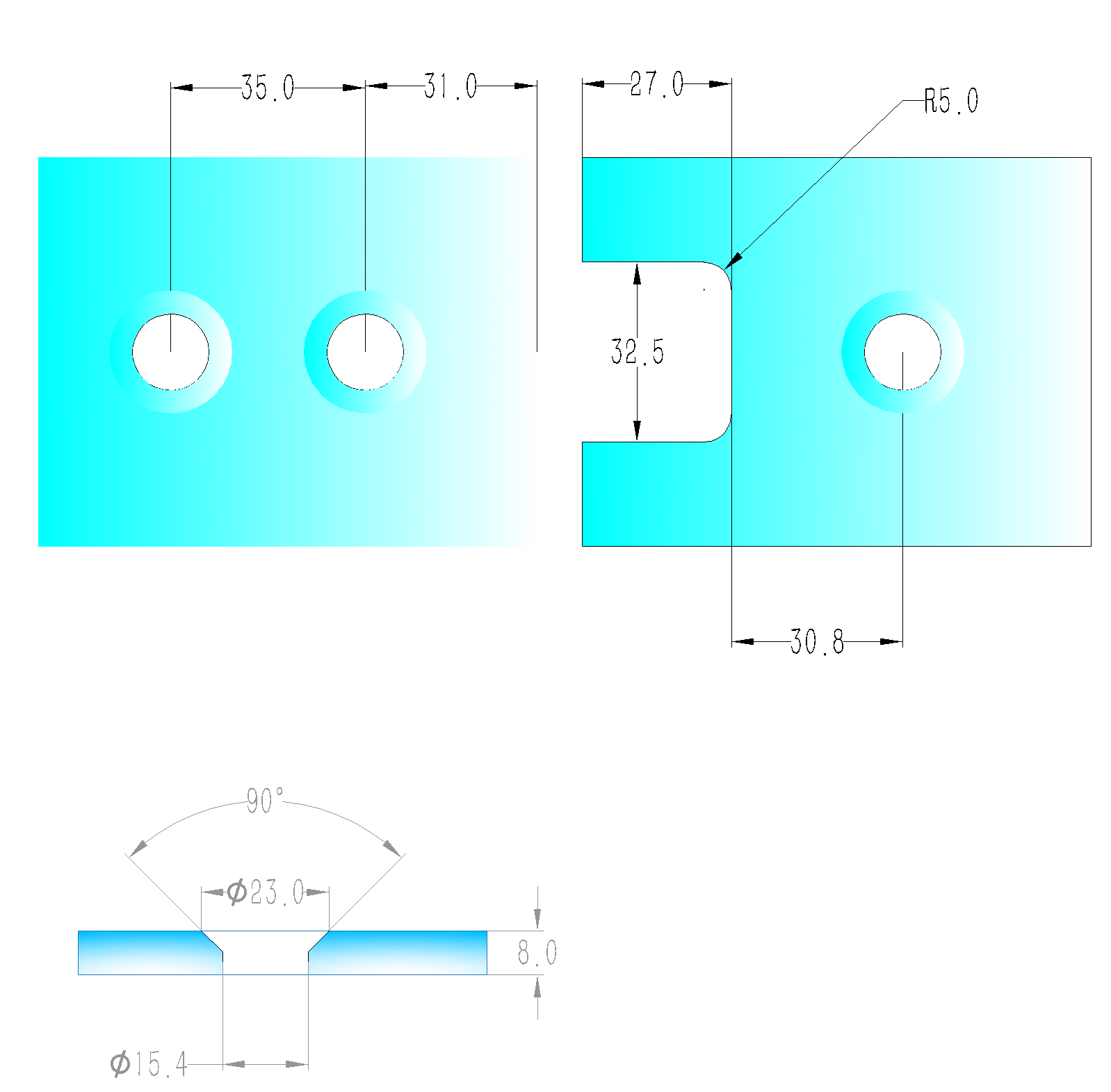

Glass Cut:
