Products

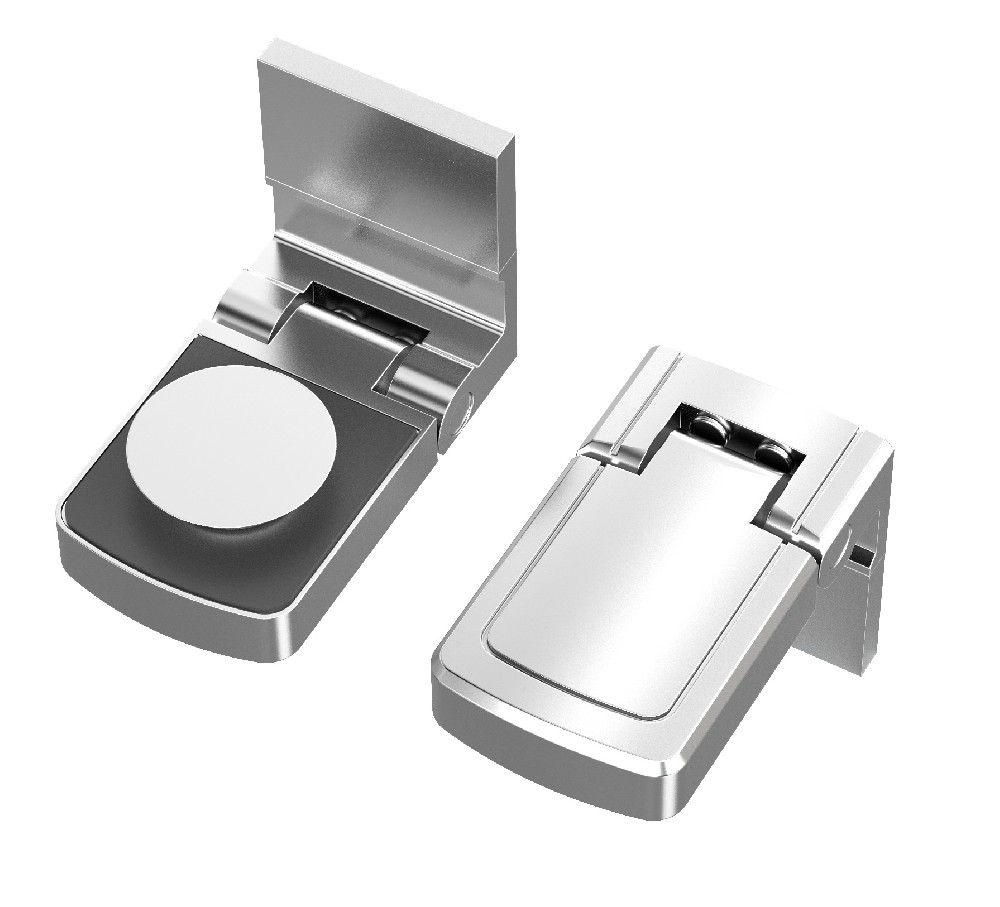

Wall Free Hinge Offset 1022
Code: SPS-1022.02
Note: For 6-8mm glass
Product details
•Free hinge with flush screw design
•Slip-in Wall mount cover plate
•2 Hinges maximum load: 40 kgs
•Outward openning
•Fit for glass panels in: 6/8mm glass
•Counter-sunk screw holes and U-slot in glass required
•Door panel size: 650-900mm
•Door panel height: max. as 2000mm
•Free Closing
•Material: All Solid brass construction with stainless steel spare parts
•Non-asbestos Gaskets supplied

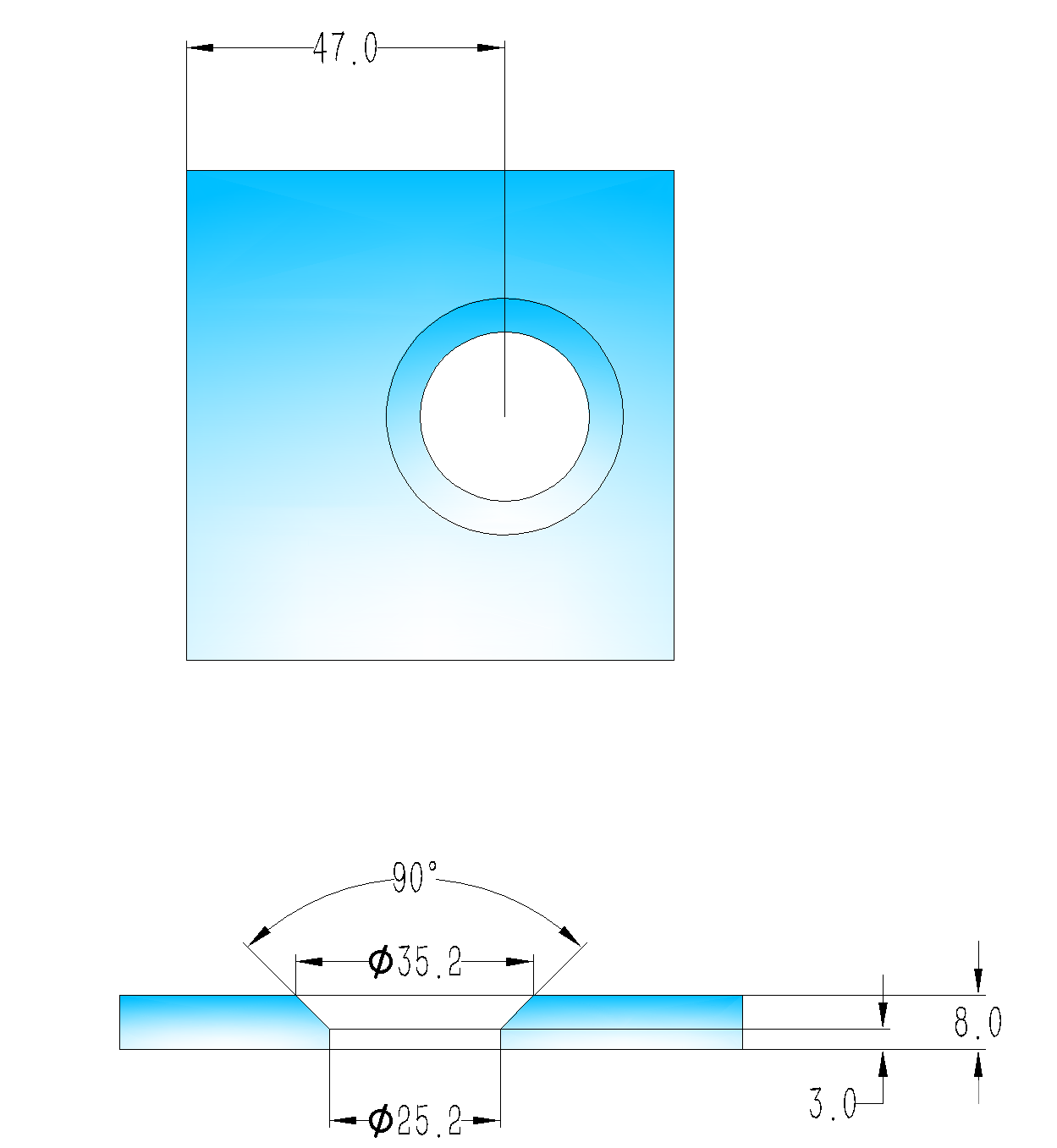

Glass Cut:
