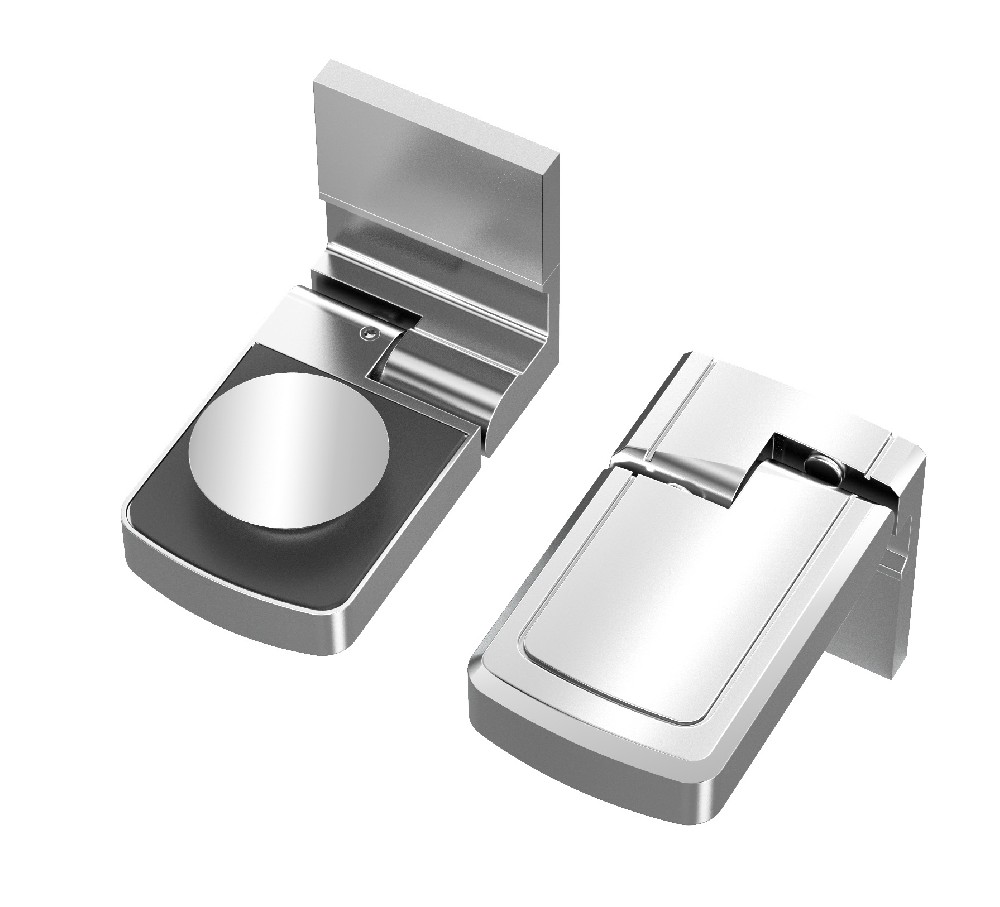

Wall Lift Hinge Offset 1023
Code: SPS-1023.02
Note: For 6-8mm glass
Product details
•Flat hinge with flush screw design
•Slip-in Wall mount cover plate
•2 Hinges maximum load: 40 kgs
•Flush design for smooth glass surface.
•Max. load: 40 kgs (2 hinges)
•Outward openning
•Fit for glass panels in: 6/8mm glass
•Countersunk glass fixing
•Slip-in cover wall plate
•Door panel size: 650-900mm
•Door panel height: max. as 2000mm
•Lift-drop closing, self closing from 30°
•Door is raised approx. 5mm on openning.
•Supplied in Left / Right version
•Material: Solid Brass with SUS parts
•Non-asbestos Gaskets supplied

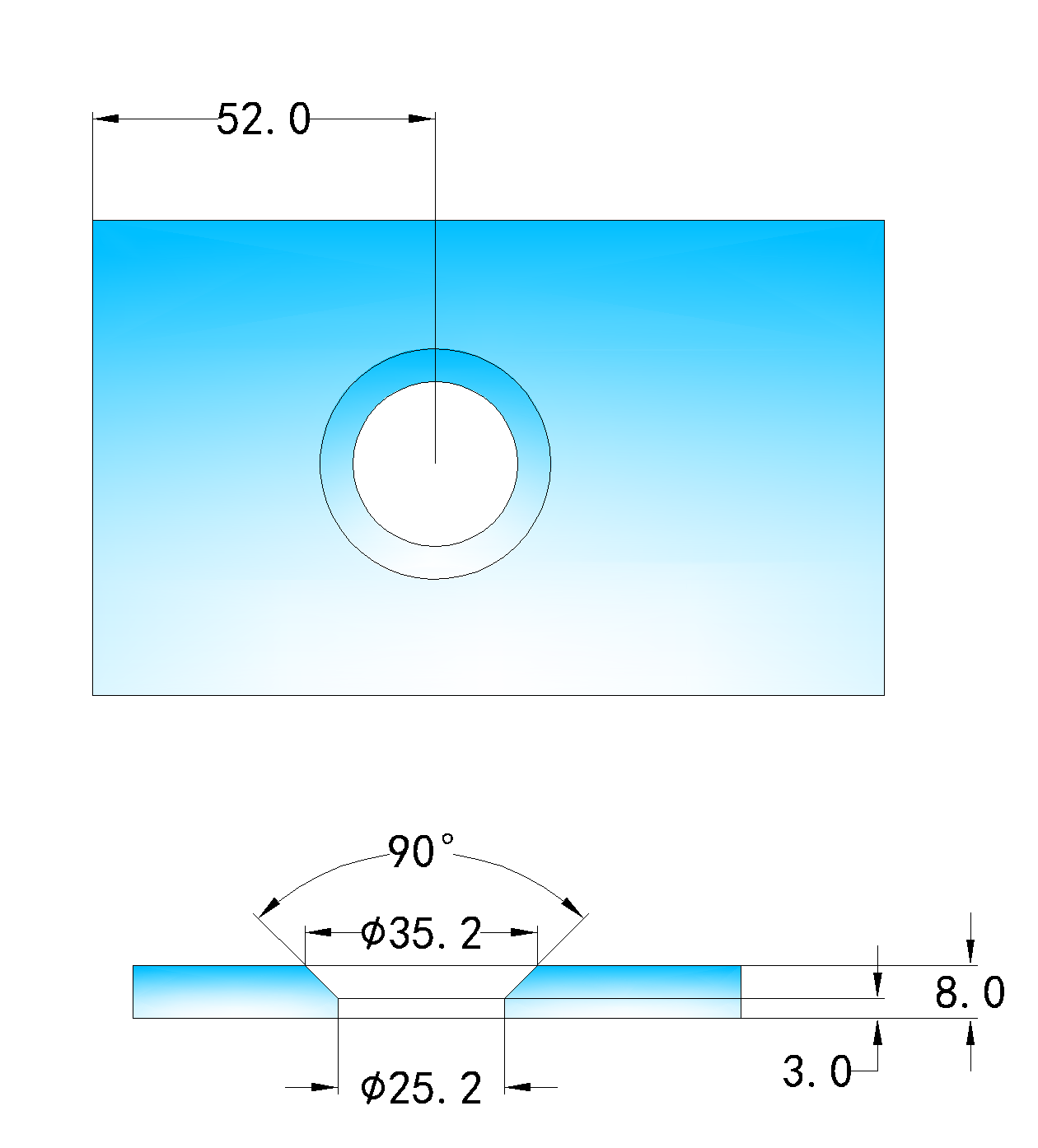

Glass Cut:
