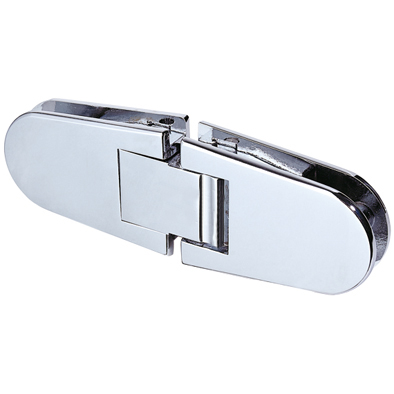

European Glass-Glass 180° Hinge
Code: SPS-131.04
Note: For 1/4"(6mm) to 5/16"(8mm) tempered glass
Product details
Description:
· Load capacity: 2 hinges Max load 30 kg, for load exceeding 30 kg a third hinge must be fitted.
· Closing Type: Opening through 180°.
· Material: Solid brass construction with stainless steel spring and pin inside

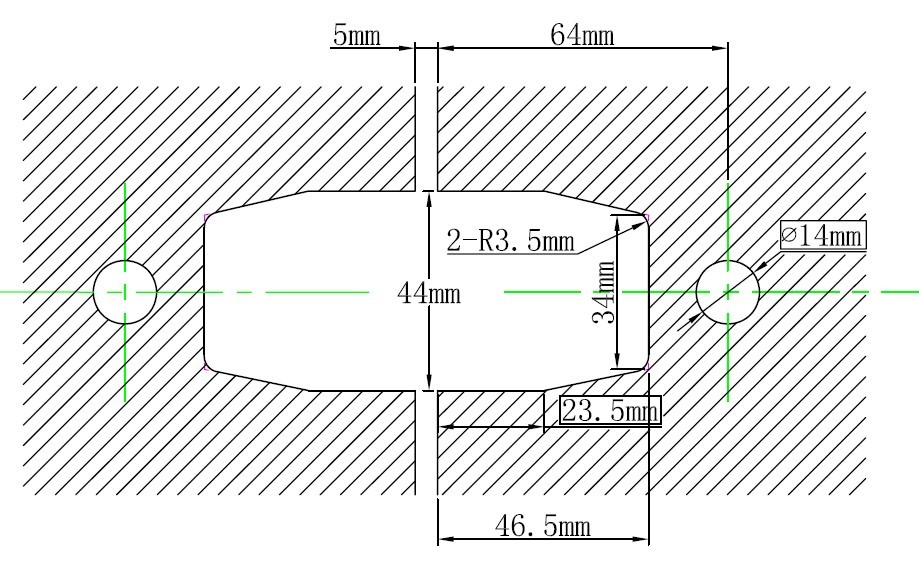

· Glass Cut-Out: As shown at left.
· Only Alan Screws available.
· Parts placed 125 mm from top and bottom of glass panel.
· 2 mm thick spacers for 6 mm glass, and spacers of 1 mm for 8 mm glass.
