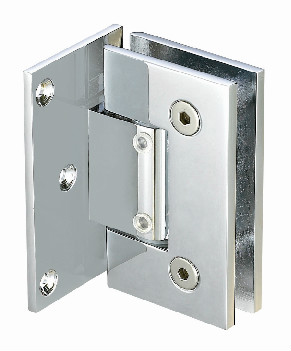

Adjustable Wall Mount Offset Back Plate Hinge
Code: SPS-100.03A
Note: Duty For 3/8"(10mm) to 1/2"(12mm) tempered glass.
Product details
Description:
· Special Feature: Adjustable to any angle up to 90° without having to take the door down.
Steps: Loosen the adjustable allen screws, move the door to the closed position, tighten the screws.
The door will then close to that position.
· Load capacity: 2 hinges for 36kg door, 3 hinges for 54kg door.
· Closing Type: Self-centering when within 15° of closed position, hinge swings 90° in and 90° out.
· Stainless steel clamp screws are available in both alan and phillips types.
· Material: Solid brass construction with stainless steel spring inside
· Glass Cut-Out: Regular Cut-Out Required, same as SPS-100.01.
