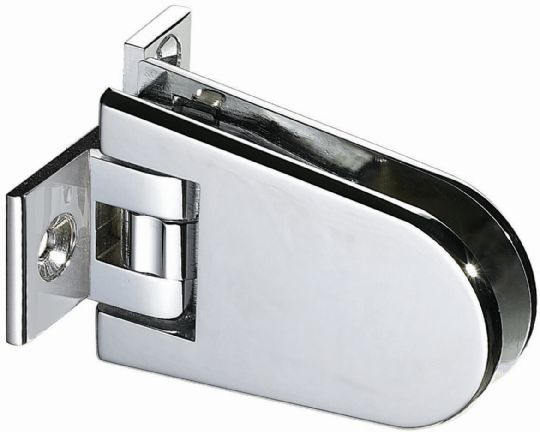

European Adjustable Wall Mount Full Back Plate Hinge
Code: SPS-131.01A
Note: For 1/4"(6mm) to 5/16"(8mm) tempered glass
Product details
Description:· Special Feature:
1). The stop angle of the hinge can be adjusted into any place according to the type of installation.
2). The offset back plate allows clean sight line from shower exterior.
· Load capacity: Max load of 2 hinges as 30 kg, for load exceeding 30 kg a third hinge must be fitted.
· Closing Type: Opening through 180°.
· Material: Solid brass construction with stainless steel spring and pin inside
· Glass Cut-Out: Shown as left.
· Only Alan Screws Available.
· Parts placed 125 mm from top and bottom of glass panel.
· 2 mm thick gaskets for 6 mm glass, and gaskets of 1 mm for 8 mm glass.
