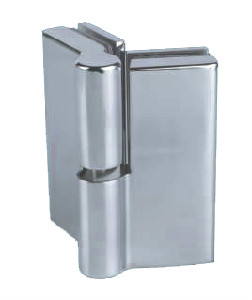

Lift Off Glass-Glass Shower Hinge
Code: SPS-180.02
Note: Fit for 8-12mm glass
Product details
Description:
Glass-Glass lift up and down hinge.
· Load capacity: 2 hinges for 36kg door, 3 hinges for 54kg door.
· Closing Type: Self-centering by lifting down when within 25° of closed position, 4mm lift height. Hinge swings 90° in and 90° out.
· Material: Solid brass construction with rubber / plastic parts of lift construction.
· Glass Cut-Out: 2*14mm diameter hole required, hole distance as 50mm. 31mm away from the glass edge.
· Both PVC and asbestos gaskets are available.
· Designed in 2 styles, left style and right.
