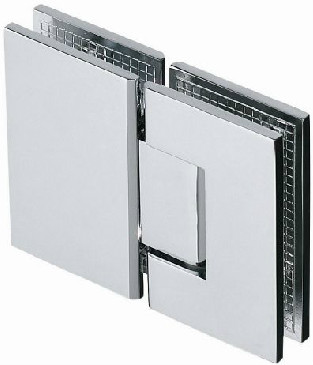

Glass-Glass 180° Light Duty Hinge
Code: SPS-100.04S
Note: Light Duty For 1/4"(6mm) to 5/16"(8mm) tempered glass
Product details
Description:
· Special Feature: With the same design and model as of SPS-100.04 but smaller size for lower load.
· Load capacity: 2 hinges for 25kg door, 3 hinges for 37kg door.
· Closing Type: Self-centering when within 15° of closed position, hinge swings 90° in and 90° out.
· Stainless steel clamp screws are available in both alan and phillips types.
· Material: Solid brass construction with stainless steel spring inside
· Glass Cut-Out: Light-Load Cut-Out Required, dimension required as shown at left.
· Gaskets material: Black Rubber / PVC.
