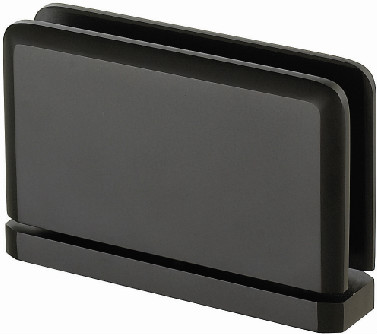

Top/Bottom Mount Pivot Hinge
Code: SPS-121.01
Note: Regular Duty For 5/16"(8mm) to 3/8"(10mm) tempered glass
Product details
Description:
· Special Feature: Can be mounted floor and ceiling, or floor and to header system.
· Load capacity: 2 hinges for 8mm glass for 45kg.
· Closing Type: Self-centering when within 15° of closed position, Full rotation
· Stainless steel clamp screws are available in both alan and phillips types.
· Material: Solid brass construction with stainless steel spring inside
· Glass Cut-Out: As shown at left.
· Gaskets: PVC / Black Rubber
