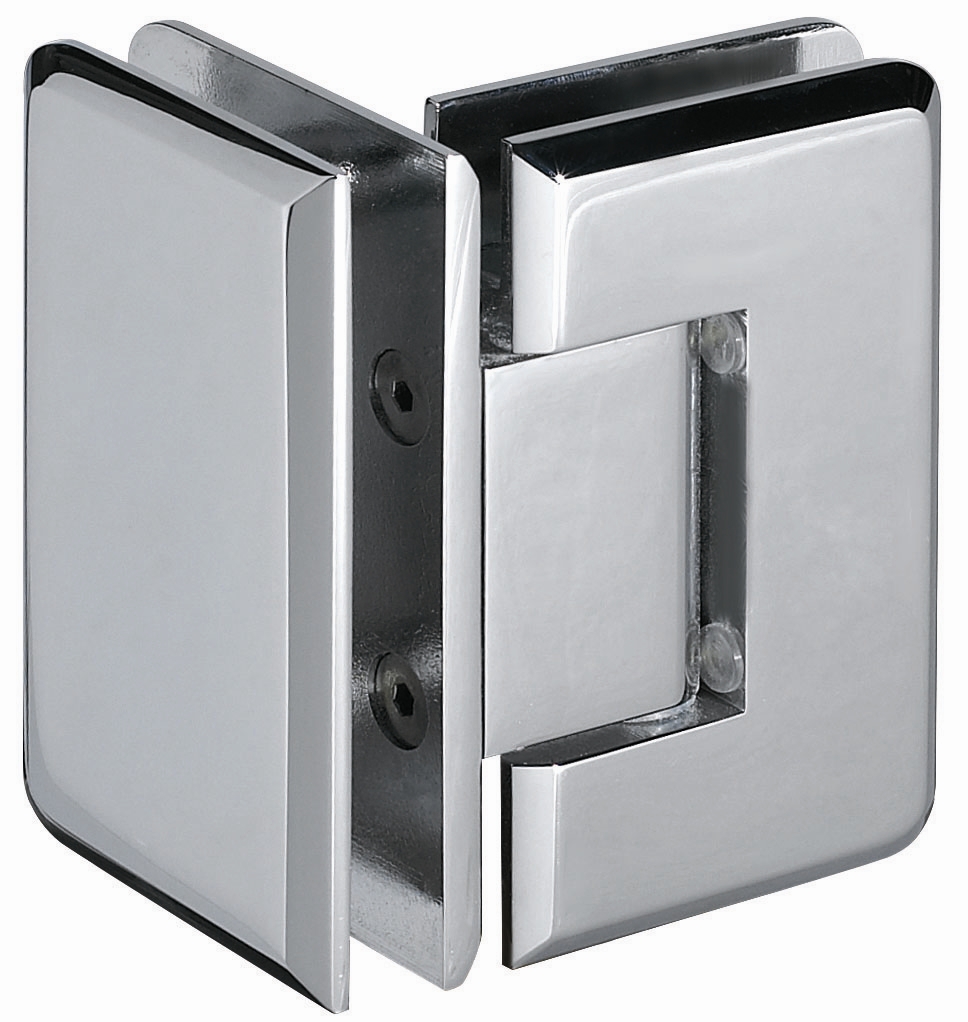

Heavy Duty Glass-Glass 90° Hinge
Code: SPS-110.06H
Note: Heavy Duty For 3/8"(10mm) to 1/2"(12mm) tempered glass
Product details
· Description:
· Special Feature: Bigger size than SPS-110.06, with 3 cover plate screws for more loading, mouse-ears moveable.
· Load capacity: 2 hinges for 50kg door, 3 hinges for 63kg door.
· Closing Type: Self-centering when within 15° of closed position, hinge swings 90° in and 90° out.
· Stainless steel clamp screws are available in both alan and phillips types.
· Material: Solid brass construction with stainless steel spring inside
· Glass Cut-Out: Heavy-Load Cut-Out Required, dimension required as below.
· Gaskets material: Black Rubber / PVC.
