Glass-Glass 180° Hinge
Code: SPS-100.04
Note: Regular Duty For 3/8"(10mm) to 1/2"(12mm) tempered glass.
Product details
Description:
· Special Feature: Offer choice of setting at standard closing position (0°), or offset model pre-set for 5° tighter closure into shower interior.
· Load capacity: 2 hinges for 36kg door, 3 hinges for 54kg door.
· Closing Type: Self-centering when within 15° of closed position, hinge swings 90° in and 90° out.
· Stainless steel clamp screws are available in both alan and phillips types.
· Material: Solid brass construction with stainless steel spring inside

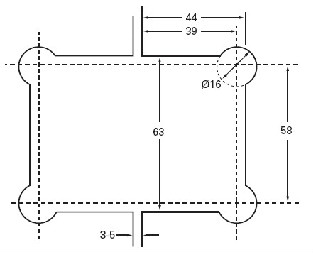

· Glass Cut-Out: Regular Cut-Out Required, dimension required as shown at left.
· Gaskets material: Black Rubber / PVC.
