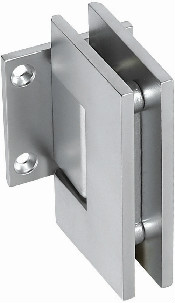

Wall Mount Short Back Plate Hinge
Code: SPS-100.02
Note: for 8-12mm glass
Product details
Description:
· Special Feature:
1). Offer choice of setting at standard closing position (0°), or offset model pre-set for 5° tighter closure into shower interior.
2). The short back plate allows a cut out that glass to be close to wall but not hit the hinge plate. · Load capacity: 2 hinges for 36kg door, 3 hinges for 54kg door.
· Closing Type: Self-centering when within 15° of closed position, hinge swings 90° in and 90° out.
· Stainless steel clamp screws are available in both alan and phillips types.
· Material: Solid brass construction with stainless steel spring inside
· Glass Cut-Out: Regular Cut-Out Required, dimension required as shown at left.
· Gaskets material: Black Rubber / PVC.
